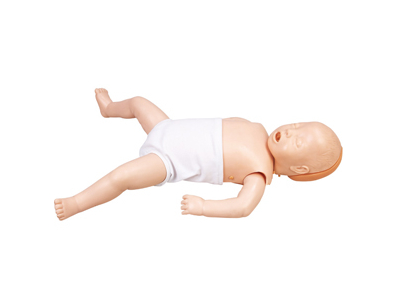

Mô hình đào tạo hồi sức tim phổi trẻ sơ sinh

Implement standard: AHA (American Heart Association) 2015 guideline for CPR and ECC

CPR manikin features:

1. Clear anatomic characteristic, realistic touch feeling and lifelike skin color, vivid appearance;

2. Simulate vital signs: squeeze the rubber ball to simulate brachial artery pulse;

3. Can perform artificial respiratory, extracardial compression and airway open;

4. Operation mode: CPR training, can perform compression and inflation;

CPR screen functions:

1. Indicators show inflation volume, correct inflation volume: 150ml-200ml;

When the inflation volume is insufficient, proper or excessive, indicators will accordingly be yellow, green or red, and alarm will ring if there are operation mistakes.

2. Indicators show compression depth: correct compression depth: approximately4 cm

When the compression depth is insufficient, proper or excessive, indicators will accordingly be yellow, green or red, and alarm will ring if there are operation mistakes.

3. Operation frequency: ≥100 times/ min.

4. Ratio of compression and artificial respiratory: 30:2/single or 15:2/double

5. Operation cycle: after 2 valid inflation, then 5 cycles CPR operation according to the ratio of compression and inflation 30:2 or 15:2;

6. Power: 220V; 6V output powder via manostat; or use 4pcs 1 battery for field training.
