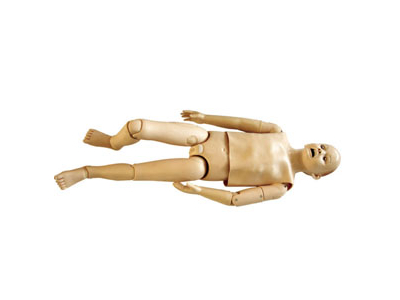

Mô hình hồi sức ACLS trẻ em

GD/ACLS165 provides child ACLS(Advanced Cardiac Life Support) comprehensive emergency skills training, which is suitable for hospitals, Medical colleges and Medical schools emergency simulation operation. The manikin is designed according to five-year-old child anatomical and physiological characteristics, adopting imported environmental material. The system consists of manikin, large-screen colored display, simulative AED, remote controller, can act a serial of emergency means, such as: CPR, tracheal intubation, real defibrillation and pacing, simulative defibrillation and pacing, ECG study and assessment, etc. It provides a simple and practical ACLS training tool for emergency physicians.

Implement standard: AHA (American Heart Association) 2010 guideline for CPR and ECC

Features:

1. Vital signs simulation: bilateral pupils observation: normal and dilated; femoral artery pulse; can simulate carotid artery pulse;

2. Airway Management: Real mouth, nose, gums, throat, esophagus, epiglottis, trachea; it can be do intubation and suction through mouth.

3. Venipuncture/transfusion: arm vein, femoral vein, dorsal vein of foot

4. Intramuscular injection: bilateral deltoid, bilateral vastus lateralis

5. Subcutaneous injection: lateral subcutaneous injection of thigh

6. Bone marrow puncture: tibia with obvious body surface symbol, effusion of simulative bone marrow indicates proper puncture operation;

7. Gastric intubation: Allows gastric lavage, gastrointestinal decompression; detect tube position via abdominal auscultation; removing the gastric liquid prompts successful intubation;

8. Urethral catheterization: replaceable male/female perineum allows male/female catheterization;

9. Ileum, rectum and bladder stoma nursing

10. CPR: Support multiple ventilation ways: mouth to mouth, mouth to nose, BVM to mouth; electronic monitoring of airway open, inflation times, frequency, volume and compression times, frequency, position and depth; automatic judgment of artificial respiration and chest compression ratio; English voice prompts during the entire process;

11. ECG monitoring: can perform ECG monitoring; 20 kinds of ECG are available;

12. Heart and Lung Auscultation: It can do auscultation and recognize hundreds of sound such as normal and abnormal heart sound, breath sound, bowel sound and vascular murmur with manikin.

13. Real defibrillation and pacing: can perform real defibrillation and pacing by using with the real defibrillating pacer (should be prepared by yourself)

GD/ACLS165AStandard components:

1. Intelligent ACLS Five-year-old Child Manikin

2. GD/HS7 BP Training Equipment

3. GD/Z970CHeart and Lung Auscultation Simulator Set

4. GD/XD1000CECG Generator

5. GD/CC999CDefibrillator Converter

6. CPR Displayer

7. BVM, Stethoscope, Laryngoscope, Tracheotomy tube, Infusion set.

GD/ACLS165B Standard components:

1. Intelligent ACLS One-year-old Child Manikin

2. GD/HS7 BP Training Equipment

3. GD/Z970CHeart and Lung Auscultation Simulator Set

4. GD/XD1000CECG Generator

5. GD/CC999CDefibrillator Converter

6. CPR Displayer

7. BVM, Stethoscope, Laryngoscope, Tracheotomy tube, Infusion set.

Optional accessories:

1. GD/AED99FAutomatic External Defibrillation Simulator

2. GD/J880 Simulative Cardiac Defibrillator and pacemaker
