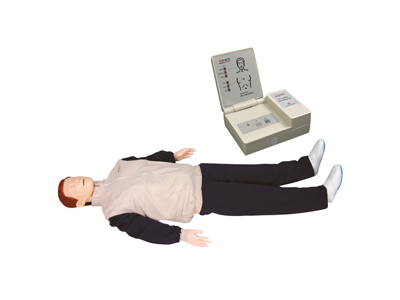

Mô hình hồi sức tim phổi nâng cao

Implement standard: AHA (American Heart Association) 2015 guideline for CPR and ECC

CPR manikin features:

1. Clear anatomic characteristic, realistic touch feeling and lifelike skin color, vivid appearance;

2. Simulate vital signs:

 1) Pupil state: contrast observation of pupils, one is dilated, the other one is contracted;

 2) Carotid artery response: squeeze the rubber ball to simulate carotid artery pulse;

3. Open airway, the airway indicator will turn green;

4. Can perform artificial breathing and external cardiac compression

CPR screen features:

1. Available CPR training;

2. Electronic monitoring of compression site;

3. Indicators show inflation volume, correct inflation volume: 500/600ml—1000ml;

 1) Insufficient inflation volume, yellow indicator

 2) Proper inflation volume, green indicator

 3) Excessive inflation volume, blue indicator

4. Indicators show compression depth: correct compression depth: 5-6cm

 1) Insufficient compression depth, yellow indicator;

 2) Proper compression depth, green indicator

 3) Excessive compression depth, red indicator;

5. Operation rate: ≥100 times/min, with “tick” sound ;

6. Operation cycle: 2 valid inflation after 30 valid compression, 5 cycles;

7. Power: 220V, 6V output powder via manostat;  or use 4pcs 1 battery;

Material:

The model is molded under high temperature by means of stainless mould, with face skin, neck skin, chest skin and hair made of imported material. It features durability, non-deformation and easy assembly and disassembly.

Standard components:

■ CPR manikin       ■ CPR displayer
